50/50KN Bitumen Coated Polyester Geogrid

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 7 Days

Basic Info


Model No.: 50-50KN,60-60KN,70-70KN,80-80KN,90-90KN,100-100KN, 105-105KN,115-115KN,120-120KN,150-150KN,200-200KN


Additional Info


Packaging: PE BAGS+COLORED TAPES

Productivity: 100000SQM PER DAY

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE SGI TRI SGS IECA IGS


Product Description

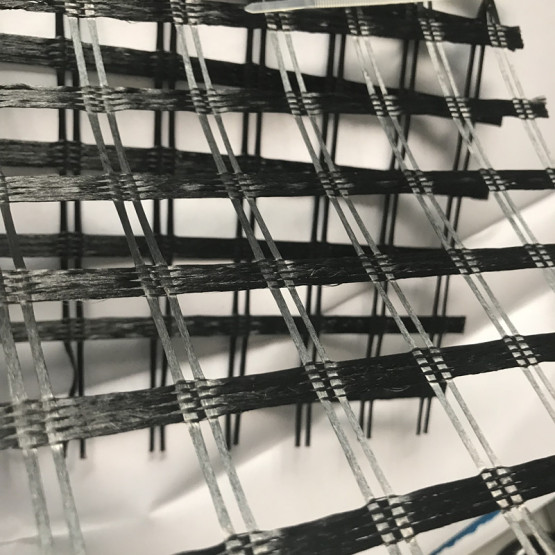

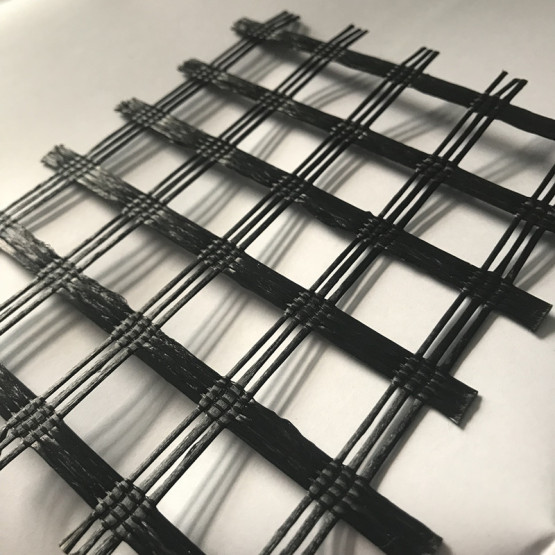

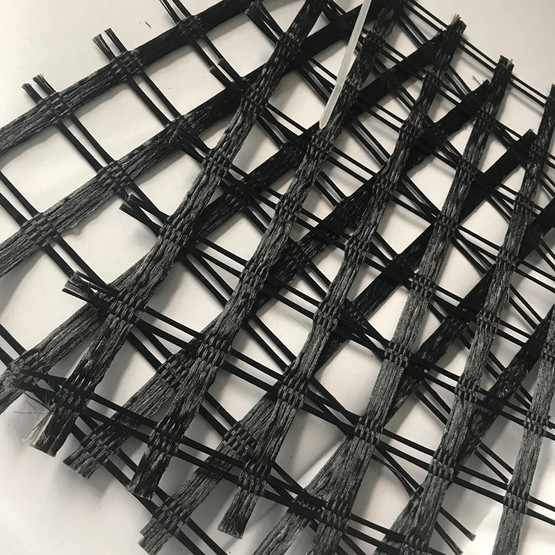

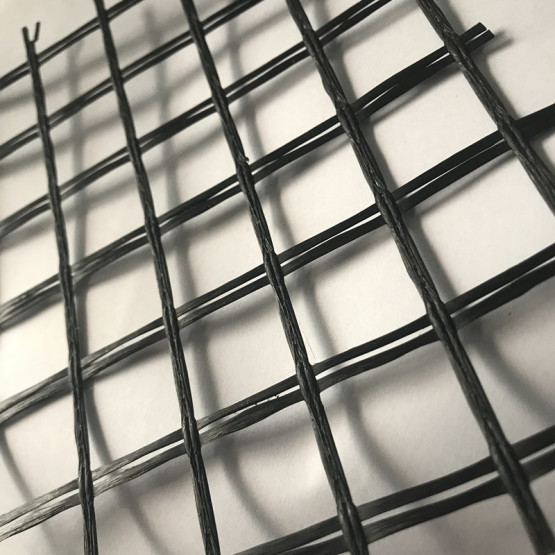

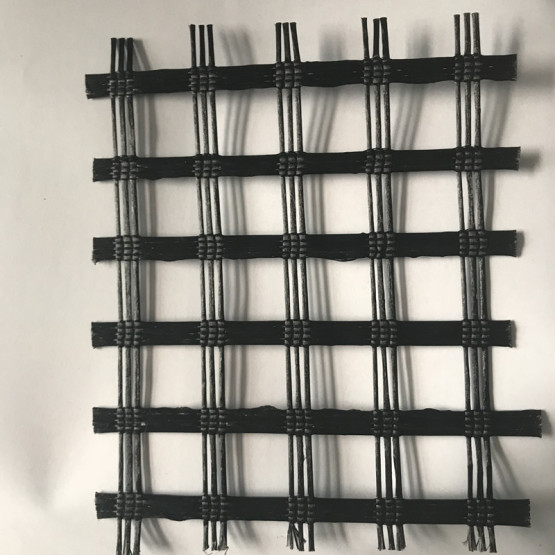

                                           50/50KN Bitumen Coated Polyester Geogrid


Product Introduction


Bitumen Coated Polyester(PET) Geogrid is a kind of new high quality base material reinforcing the roadbed.  It uses high strength polyester and polypropylene fiber as its raw material and then warp knitted directionally and coated with bitumen or PVC.


Product Features


The warp knitted polyester geogrid has the characteristics of  high intension, low elongation ratio, erosion-resistant, aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on.


Product Function


Reinforcing the embankment slope.

Retaining walls reinforced to enhance the overall strength.

Reinforcement, segregation of dam and river in water conservancy projects reinforce and the soft soil base, strength their projection and improve the bearing capacity and stability of the foundation.

The soft soil roadbeds of road, railway and other municipal roads are reinforced which can effectively improve the strength of subgrade, delaying  reflection cracks in the road.



Specification



Tensile
Strength
(KN)

Warp

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200



Weft

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200

Elogation

Polyester

13%

13%

13%

13%

13%

13%

13%

13%

Mesh size(mm)

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

Width(m)

1~6

1~6

1~6

1~6

1~6

1~6

1~6

1~6

Length(m)

50~300

50~300

50~300

50~300

50~300

50~300

50~300

50~300

Temperature
Resistant ()

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

Resin
Content (%)

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

resistance to installation damage

%SC/%SW/%GP

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

resistance to long term degradation  %

100

100

100

100

100

100

100

100

Design life   (years)

150

150

150

150

150

150

150

150

Glue Type

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

Feicheng Lianyi Engineering Plastic Co., Ltd has been a leader market for more than 16 years in manufacturing geosynthetics material for domestic and export markets.

The products we product are Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China, Polyester Geogrid,Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China & Polyester Geogrid 50/50KN Stitched with lightweight spunbond nonwoven geotextile, Plastic geogrid, biaxial geogrid, high tensilestrength geogrid made in China & Polyester Geogrid Composite with spunbond nonwoven geotextile, or needlepunched nonwoven geotextile by glue, PP Biaxial Geogrid, HDPE and PP Uniaxial Geogrid, Combigrid ( PP Biaxial Geogrid composite with nonwoven geotextile by welding), HDPE Geomembrane, HDPE Geocell,Mining Geogrid, Geonet, PP Woven Geotextile etc.
