Self Adhesive Fiberglass Geogrid

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 7 Days

Basic Info


Model No.: 50-50KN,60-60KN,70-70KN,80-80KN,90-90KN,100-100KN, 105-105KN,115-115KN,120-120KN,150-150KN,200-200KN


Additional Info


Packaging: PE Bags + Colored Tapes

Productivity: 1000000 Sqm Per Day

Brand: Lianyi Geosynthetics

Place of Origin: China

Certificate: ISO CE SGI TRI SGS IGS IECA


Product Description

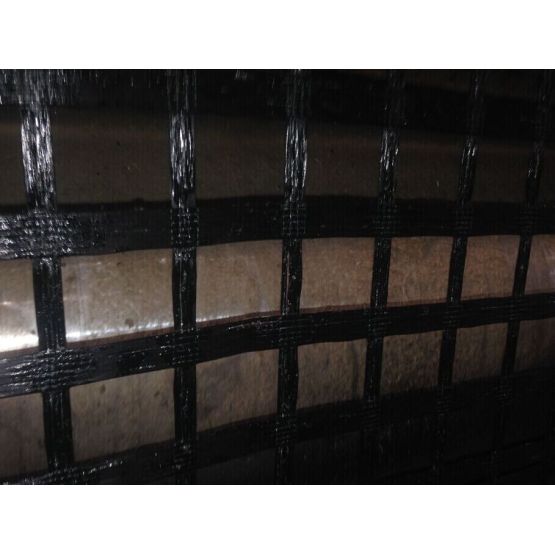

                          Self Adhesive Fiberglass Geogrid



Product Feature

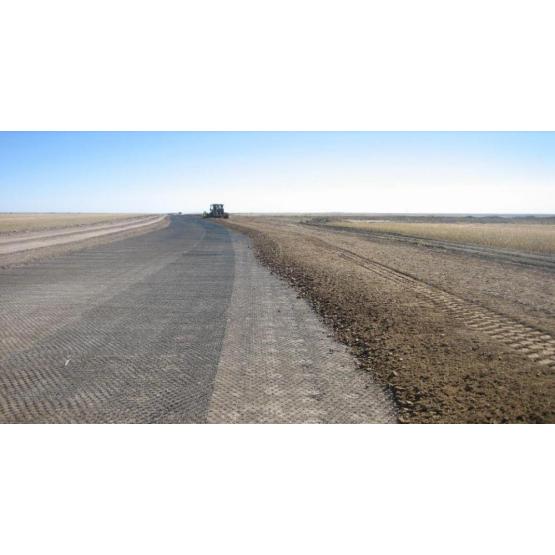

The product has high intensity,the elongation ratio is low, thermostable,the module is high, toughness is good,anti-corrosive,long life and so on characteristics, so widely applies to the old cement road surface, runway's service,the river bank, the side slope protection, project domains and so on road bridge connection surface enhancement.



Product Function


1. It reinforce old asphalt concrete road surface and asphalt layer, and prevents damage;

2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction;

3. It is used in road expansion and improvment project and crack caused by old and new combination position and uneven sedimentation;

4. It is used in soft soil base reinforcement treatment ,is favorable for soft soil water separation and concretion,restrains sedimentation effectivly,distributes stress uniformly and improve overall strength of road base;

5. It is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation crack reflection.




Specification




Performance/Specification

GG25-25

GG30-30

GG40-40

GG50-50

GG80-80

GG100-100

GG120-120

Intensity (KN/m)

Longitudinal

≥25

≥30

≥40

≥50

≥80

≥100

≥120



Horizontal

≥25

≥30

≥40

≥50

≥80

≥100

≥120



Horizontal

≤3

≤3

≤3

≤3

≤3

≤3

≤3

Mesh size (mm×mm)

12~50

12~50

12~50

12~50

12~50

12~50

12~50

Breadth (m)

1~6

1~6

1~6

1~6

1~6

1~6

1~6














Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
