Engineering HDPE Uniaxial Geogrid

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 5 Days

Basic Info


Model No.: 30KN to 300KN

Material: Plastic

Polyethelene Extruded Geogrid 1-3m: UX Geogrid 30KN To 300KN


Additional Info


Packaging: Colored tapes

Productivity: 500000 Sqm Per Day

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: China

Certificate: ISO CE IGS IECA SGS SGI TRI


Product Description

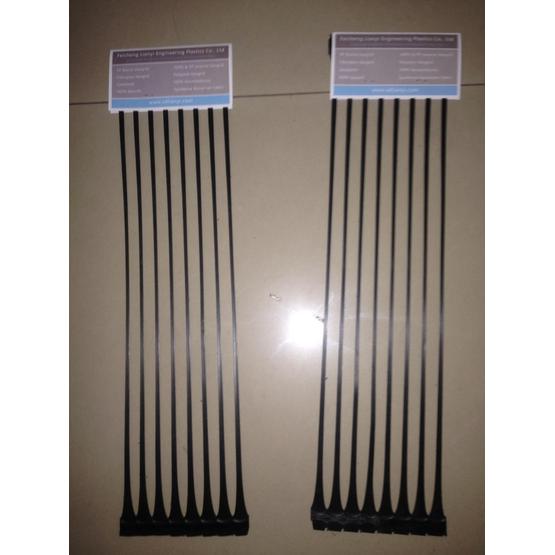

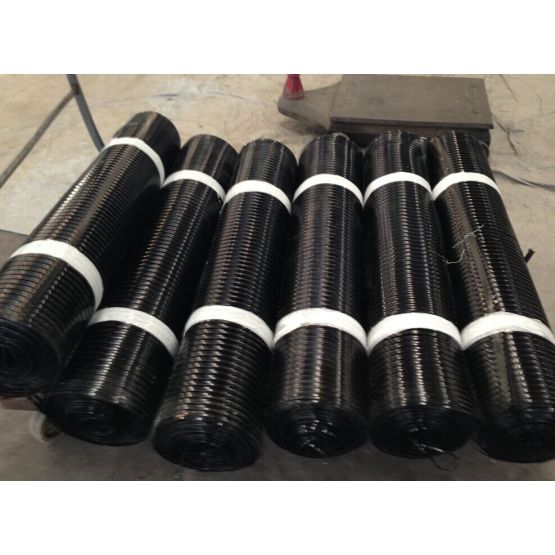

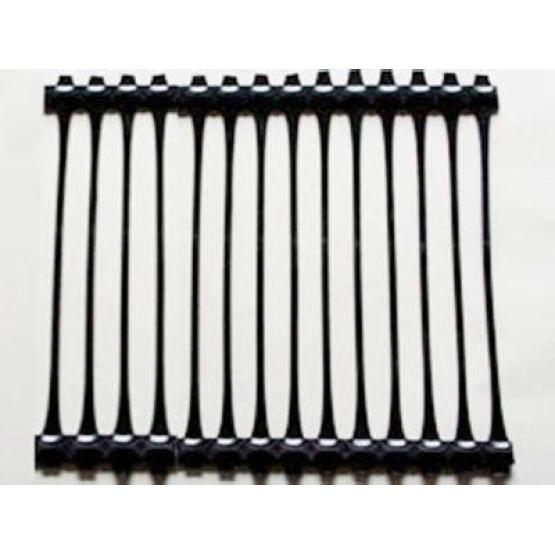

             Engineering HDPE Uniaxial Geogrid


Product Introduction


Engineering HDPE Uniaxial Geogrid is made of high molecular polyethelene after extruded and laminated and punched into regular mesh before longitudinal stretching. This process makes high molecule in direct line state in oblong oval net structure with uniform distribution and high node intensity. This structure has rather high tensile strength and stretch modulus, especially our products of this kind have superior world class tensile strength and stretch modulus with extensibility between 2% and 5%. The soil offers ideal force carrying and diffusing chain system.  It has large tensile strength (>150Mpa),  and is suitable for different kinds of soil. It is a prevailing reinforcement material.



Application


1.  Enhance roadbed and effectively diffuse its load to improve its stability and bearing capacity and increase service life;
2.  Can bear more alternate load;
3.  Prevent roadbed distortion and crack caused by the loss of roadbed materials;
4.  Increase the self-supporting property of fill behind retaining wall, decrease the earth pressure of retaining wall, save cost, increase service life and reduce maintenance expense;

5. Combine anchor sprouting concrete construction method to give side slope maintenance, which not only saves investment by 30%-50% but also reduces erection time by one time or above.
6.  To increase geogrid in the roadbed and surface of highways can reduce flexure, track and put off the flawing appearance by 3-9 folds and reduce the thickness of structural layer by 36% ;
7.  It is applicable to any kind of soil, not necessary to draw material from other place, saving time and labor;
8.  Simple and rapid construction will greatly reduce construction cost.




Specification

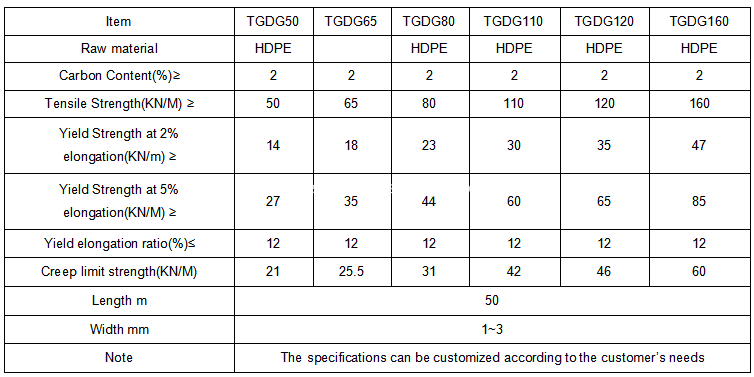

HDPE Uniaxial Geogrid Specification 165936


Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
