Biaxial Extruded Polypropylene Geogrids BXPP Geogrid

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 5000 Bag/Bags
Delivery Time: 7 Days

Basic Info


Model No.: 15/15KN,20/20KN,30/30KN,40/40KN,50/50KN,60/60KN

Material: Plastic

Biaxial Geogrid-PP: 15-15KN,20-20KN,30-30KN,40-40KN,50-50KN


Additional Info


Productivity: 500,000.00 sqm per day

Brand: Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE IGS TRI SGS SGI IECA


Product Description

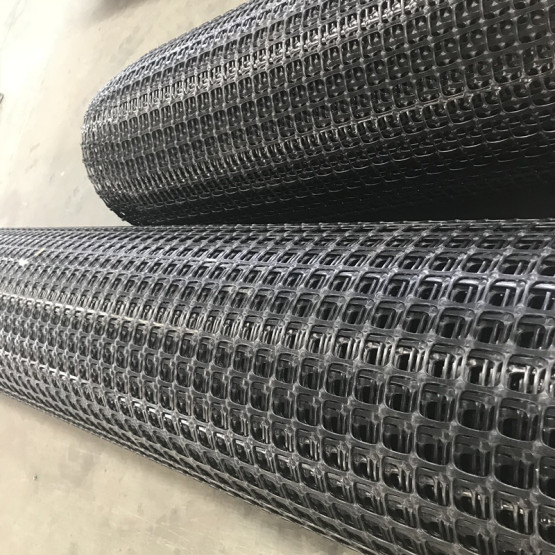

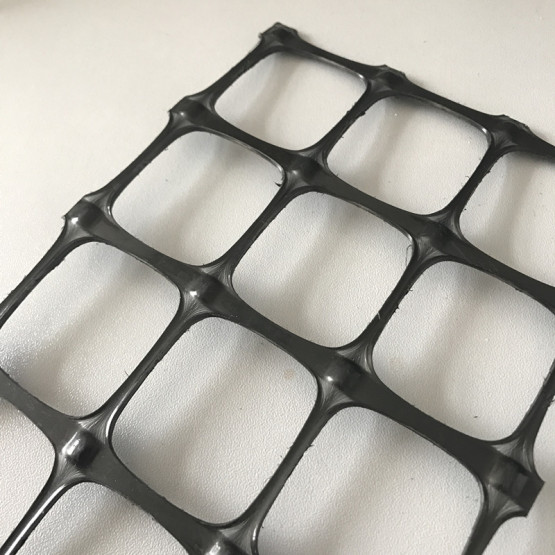

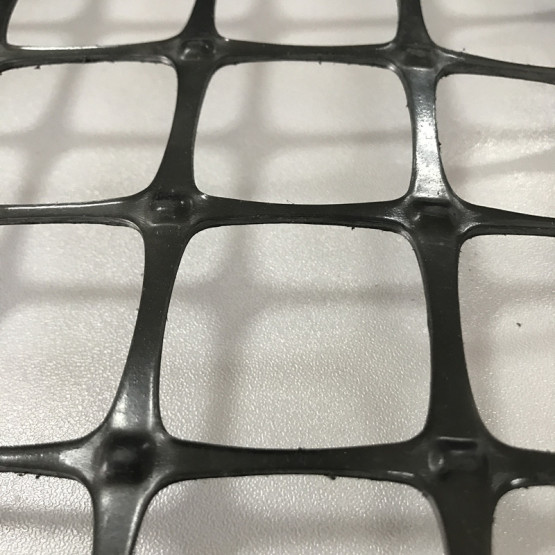

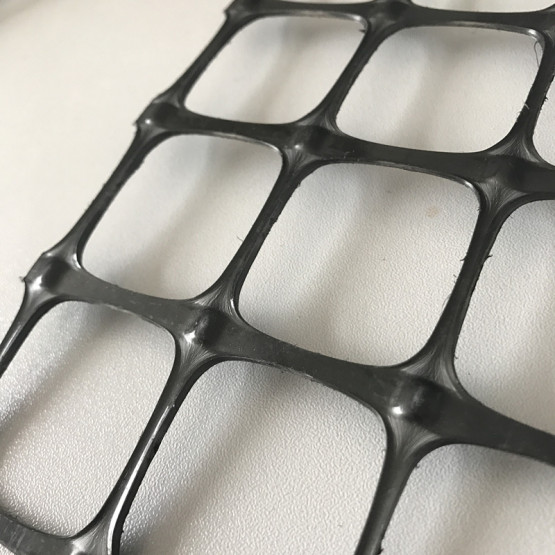

                                                               Biaxial Extruded Polypropylene Geogrids


Product Introduction


Biaxial Extruded Polypropylene Geogrids, made of high molecular polymer(PP materials), extruded into sheet and then punched into regular mesh pattern, and finally stretched in longitudinal and transverse directions.


Biaxial Geogrid is a term given to geogrids with relatively similar strength properties in both directions, with the length of the roll and across the roll. In soil stabilization applications, Biaxial Polypropylene Geogrids are commonly used to improve the performance of weak subgrades. By distributing dynamic loads over a wider area, pumping and shear failures are minimized, resulting in increased load bearing capacity of the subgrade. Biaxial Polypropylene Geogrids are also very effective in base reinforcement applications. The openings in the geogrid interact with base materials, confining them and preventing lateral dispersion.





Product Features


    1.  Increase the bearing capacity of the roadbed and foundation and prolong their service life.
    2.  Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
    3.  Convenient construction saves time and labor, reduce mounting time and decrease maintenance  expense.
    4.  Prevent culverts from flawing.
    5.  Enhance earth slope and prevent water loss and soil erosion.
    6.  Decrease underlayer thickness and save manufacturing cost.
    7.  Enhance the stability of side slope turf net patch to improve greening.
    8.  Replace wire netting used in mine as intermediate ceiling netting.


Product Function


1.  It can be applied in all kinds of roads, railways, airports to enhance the roadbed.

2.  It can be applied in a large car park and terminal freight yard, etc. to strengthen the foundations of a permanent load;

3.  It can be applied in rail, road slope's protection;

4.  It can be applied to enhance the culvert;

5.  It can be applied as a secondary enhancement after the uniaxial geogrid soil enhancement, further enhancement to the soil; prevent soil erosion;

6.  It can be applied in mining, tunnel reinforcement.




Specification


Specification

Test Method



BX1515

BX2020

BX2525

BX3030

BX4040

BX1100

BX1200

BX3030L

Index



Unit

MD

XMD

MD

XMD

MD

XMD

MD

XMD

MD

XMD

MD

XMD

MD

XMD

MD

XMD

Ultimate Tensile strenth

D6637

KN/m

15

15

20

20

25

25

30

30

40

40

12.4

19.0

19.2

28.8

30

30

Aperture Size



mm

39

36

33

31

39

36

33

31

39

36

33

31

39

36

33

31

39

36

33

31

39

36

33

31

39

36

33

31

39

36

33

31

39

36

33

31

39

36

33

31

25

33

25

33

65

65

Minimum Rib Thickness



mm

1.0

0.8

1.5

1.1

1.8

1.4

2.2

1.7

2.5

2.0

1.0

0.8

1.4

1.27

1.7

1.5

Tensile Strength @2%Strain

D6637

KN/m

6

6

7

7

9

9

11

11

15

15

4.1

6.6

6

9

11

11

Tensile Strength @5%Strain

D6637

KN/m

11

11

13

13

17

17

21

21

27

27

8.5

13.4

11.8

19.6

21

21

Junction Efficiency



%

95

95

95

95

95

95

95

95

Flexural Stiffness

D7748

mg-cm

690,000

780,000

860,000

960,000

1,000,000

250,000

750,000

960,000

Aperture Stability



m-N/deg

0.30

0.50

0.62

0.75

0.85

0.32

0.65

0.75

Resistance to InstallationDamage



%SC/%SW/%GP

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

Resistance to Long TermDegradation



%

100

100

100

100

100

100

100

100

Resistance toUV Degradation

D4355

%

100

100

100

100

100

100

100

100

Minimum Cabon Black



%

2

2

2

2

2

2

2

2

Unit Weight



g/m2

175-210

220-250

260-300

300-340

450-500

180-210

280-310

320-360

Rolls Dimensions (Length,Width)



m

     100*3.95      100*5      100*5.95

     50*3.95      50*5      50*5.95

    50*3.95      50*5      50*5.95

50*3.95      50*5      50*5.95

50*3.95

    75*3.95      75*5      75*5.95

50*3.95      50*5      50*5.95

50*3.95      50*5      50*5.95



Our Main Products


Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China, Polyester Geogrid,Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China & Polyester Geogrid 50/50KN Stitched with light weight spunbond nonwoven geotextile, Plastic geogrid, biaxial geogrid, high tensilestrength geogrid made in China & Polyester Geogrid Composite with spunbond nonwoven geotextile, or needlepunched nonwoven geotextile by glue, PP Biaxial Geogrid, HDPE and PP Uniaxial Geogrid, Combigrid ( PP Biaxial Geogrid composite with nonwoven geotextile by welding), HDPE Geomembrane, HDPE Geocell,Mining Geogrid, Geonet, PP Woven Geotextile etc.
