Product Description

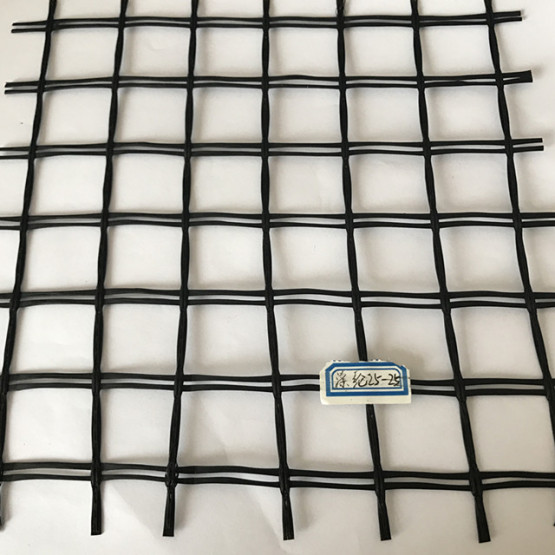

Bitumen Coated Biaxial Fiberglass Geogrid for Asphalt
Product Feature
Bitumen Coating Fiberglass Geogrid has high intensity,the elongation ratio is low,thermostable, the module is high, toughness is good, anti-corrosive, long life and so on characteristics,so widely applies to the old cement road surface, runway's service, the river bank,the side slope protection,project domains and so on road bridge connection surface enhancement.
Product Function
1. It reinforce old asphalt concrete road surface and asphalt layer, and prevents damage;
2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction.
3. It is used in road expansion and improvment project and crack caused by old and new combination position and uneven sedimentation;
4. It is used in soft soil base reinforcement treatment , is favorable for soft soil water separation and concretion,restrains sedimentation effectivly,distributes stress uniformly and improve overall strength of road base;
5. It is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation crack reflection.
Specification
|
Performance/Specification
|
GG25-25
|
GG30-30
|
GG40-40
|
GG50-50
|
GG80-80
|
GG100-100
|
GG120-120
|
|
Intensity (KN/m)
|
Longitudinal
|
≥25
|
≥30
|
≥40
|
≥50
|
≥80
|
≥100
|
≥120
|
|
|
Horizontal
|
≥25
|
≥30
|
≥40
|
≥50
|
≥80
|
≥100
|
≥120
|
|
Break elongation ratio (%)
|
Longitudinal
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
|
|
Horizontal
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
|
Mesh size (mm×mm)
|
12~50
|
12~50
|
12~50
|
12~50
|
12~50
|
12~50
|
12~50
|
|
Breadth (m)
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
Any other products,such as
Fiberglass Geogrid, Polyester Geogrid, PP Biaxial Geogrid, HDPE/PP Uniaxial Geogrid. Fiberglass Geogrid/Polyester Geogrid Stitched with Nonwoven Fabric,Combind Geogrid, PP/Polyester Nonwoven Gweotextile, HDPE Geocell. Geomembrane, PP/Polyester Spunbond Nonwoven Fabric,Geonet, Fiberglass Mesh, PP/PET Woven Geotextile,etc.Please contact us at any time.
