Bitumen Coated Fiberglass Geogrid With Nonwoven Geotextile

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 7 Days

Basic Info


Model No.: 50/50-25,100/100-25,50/50-30,100/100-30,50/50-50


Additional Info

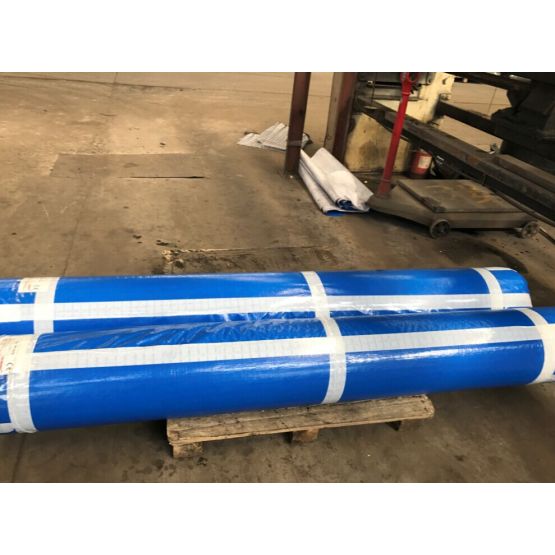

Packaging: PE Bags+Colored tapes

Productivity: 100000sqm per day

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE SGS SGI TRI IGS IECA IFAI


Product Description

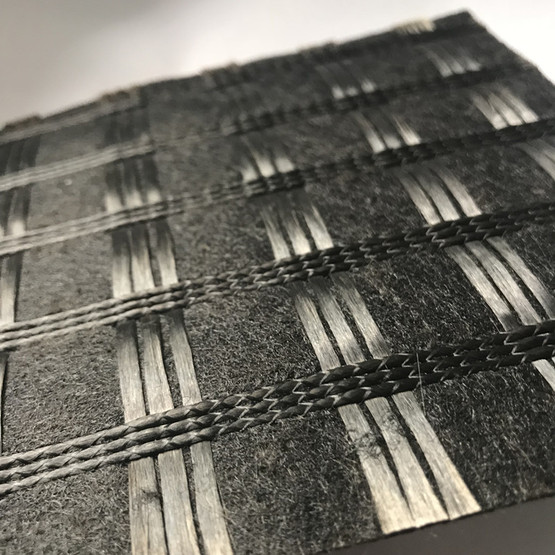

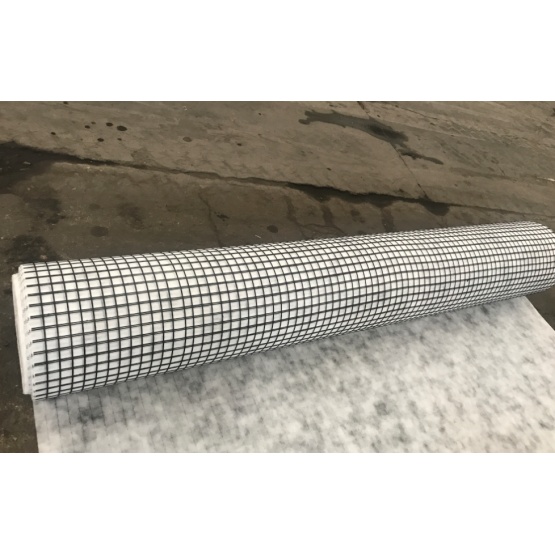

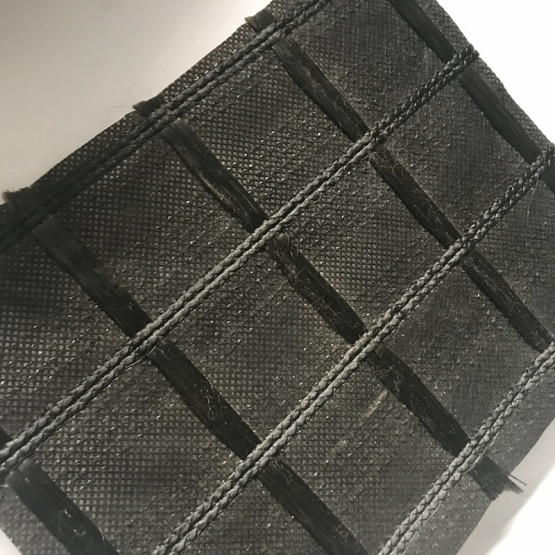

 Bitumen Coated Fiberglass Geogrid With Nonwoven Geotextile





Product Introduction



Bitumen Coated Fiberglass Geogrid With Nonwoven Geotextile is an asphalt reinforcement composite that fiberglass geogrid with light weight PET Spunbond Nonwoven Fabric . They are stitched together and coated by bitumen to strengthen the bond with the asphalt layers . The asphalt layer to increase the tensile strength to prevent road surface crack caused by foundation crack reflection. The chemistry stability is good, the hot-stability is good, anti-weary dehiscence, anti-low temperature shrinkage crack, postponement reduction reflection crack.


Product Function


It can widely apply in the water conservation, the municipal administration, the building, the transportation, the subway, the tunnel, the environmental protection and so on.



Specification


Material Properties

Unit







Test Method

Unit Weight

g/m2

270+/-10

520+/-20

550+/-20

ASTM D-5261

Aperture Size

mm

     25.4x25.4       40x40

Measured

Open Area of Grid

%

>80

CWO 22125

Tensile Strength (MD)

KN/m

50

100

120

ASTM D-6637

Tensile Strength (CMD)

KN/m

50

100

120

ASTM D-6637

Elongation at Break

%

              <5

ASTM D-6637

Shrinkage @ 375° F for 15 min

%

              <1



Melting Point

° C

              255

ASTM D-276

Roll Size

m

2x100m,2.5x100m,3.95x100m,5x100m



Our Main Products:


 Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China, Polyester Geogrid,Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China & Polyester Geogrid 50/50KN Stitched with light weight spunbond nonwoven geotextile, Plastic geogrid, biaxial geogrid, high tensilestrength geogrid made in China & Polyester Geogrid Composite with spunbond nonwoven geotextile, or needlepunched nonwoven geotextile by glue, PP Biaxial Geogrid, HDPE and PP Uniaxial Geogrid, Combigrid ( PP Biaxial Geogrid composite with nonwoven geotextile by welding), HDPE Geomembrane, HDPE Geocell,Mining Geogrid, Geonet, PP Woven Geotextile etc.
