Composite PET Geogrid With Nonwoven Geotextile

Unit Price: 0.1~1.6 USD
Min. Order: 10000 Square Meter

Basic Info


Model No.: 50-50KN,60-60KN,70-70KN,80-80KN,90-90KN,100-100KN, 105-105KN,115-115KN,120-120KN,150-150KN,200-200KN

Variety: Geogrids

Material: Polyester

Polyester Geogrid With Nonwoven 1-6m: 30/30-30,50/50-30,100/100-30 30/30-50,50/50-50,100


Additional Info


Packaging: PE Bags And Colored Tapes

Productivity: 500,000.00 sqm per day

Brand: Lianyi Geosnthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE IGS IECA SGS TRI SGI


Product Description

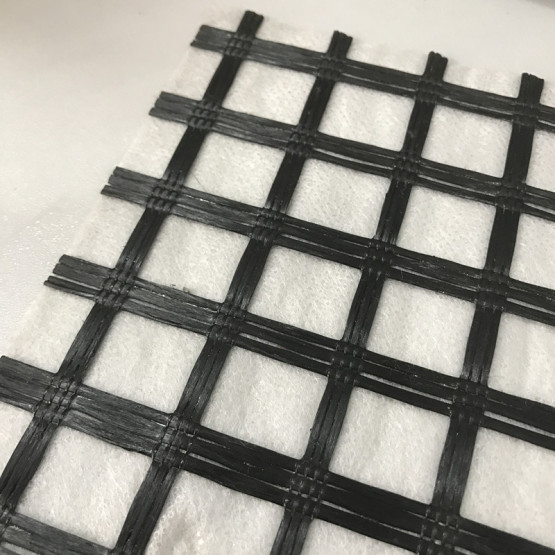

Polyester Geogrid Stitched With Nonwoven Geotextile Impregnated By Bitumen





Product Introduction



ASPHALT REINFORCEMENT GEOGRID is an asphalt reinforcement composite that High density Polyester geogrid with light weight  PET Spunbond Nonwoven Fabric .They are stitched together and coated by bitumen to strengthen the bond with the asphalt layers .The asphalt layer to increase the tensile strength to prevent road surface crack caused by foundation crack reflection. The chemistry stability is good, the hot-stability is good, anti-weary dehiscence,  anti-low temperature shrinkage crack, postponement reduction reflection crack.


Product Function


It can widely apply in the water conservation, the municipal administration, the building, the transportation, the subway, the tunnel, the environmental protection and so on.




Specification



Material Properties

Unit







Test Method

Unit Weight

g/m2

270+/-10

500+/-20

520+/-20

ASTM D-5261

Aperture Size

mm

     25.4x25.4      40x40

Measured

Open Area of Grid

%

              80

CWO 22125

Tensile Strength (MD)

KN/m

50

100

120

ASTM D-6637

Tensile Strength (CMD)

KN/m

50

100

120

ASTM D-6637

Elongation at Break

%

             <10

ASTM D-6637

Shrinkage @ 375° F for 15 min

%

             <1



Melting Point

° C

             255

ASTM D-276

Roll Size

 m

2x100m,2.5x100m,3.95x100m,5x100m
