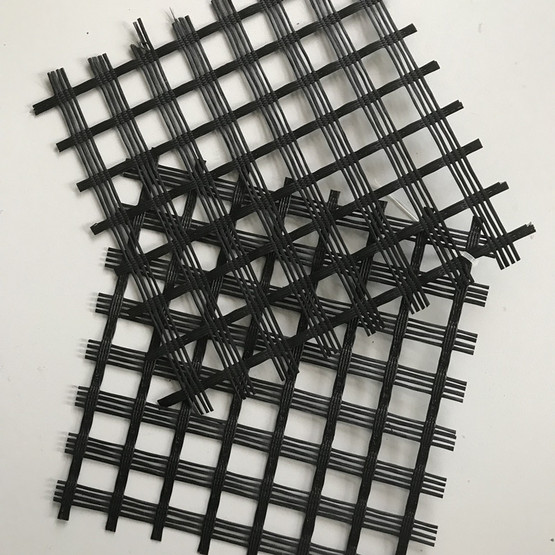

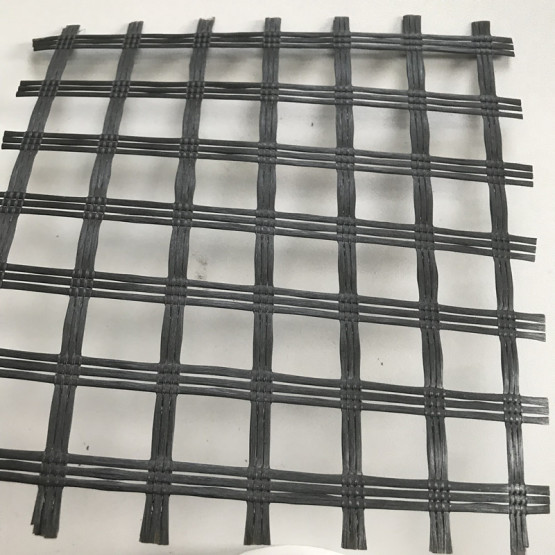

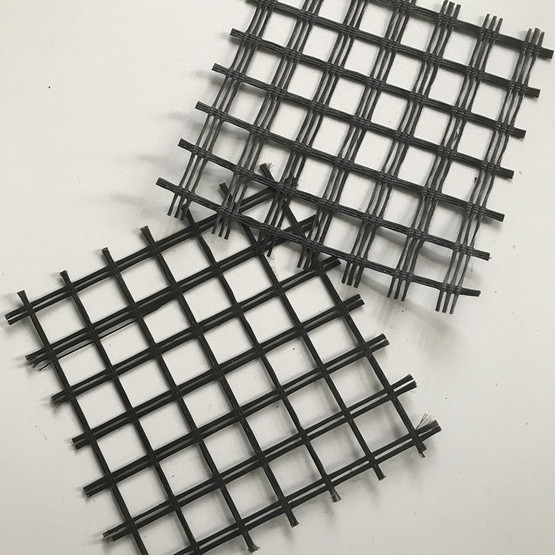

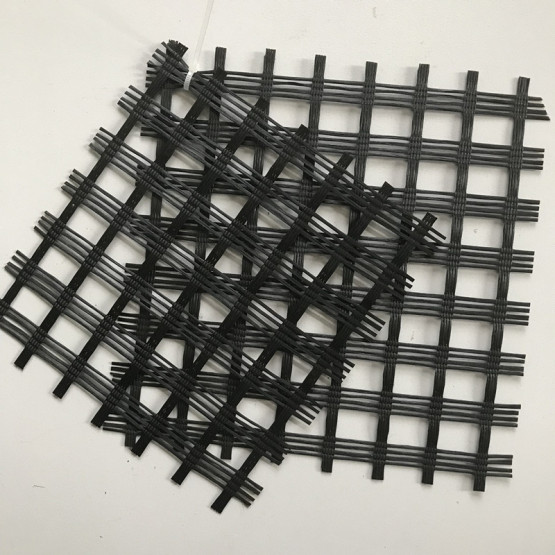

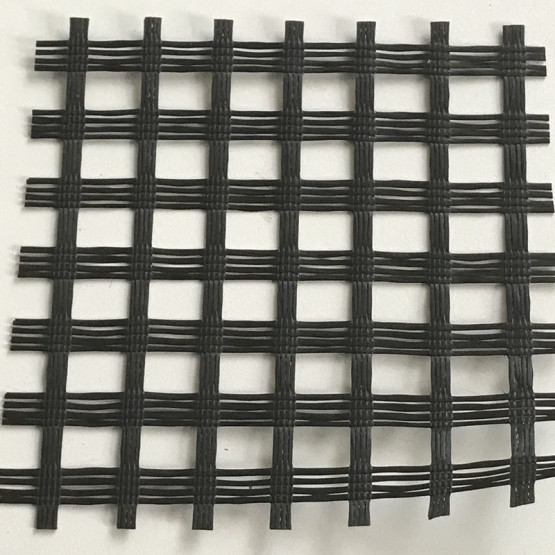

Fiberglass Yarn types of geogrid

Unit Price: 0.1~1.6 USD
Min. Order: 10000 Square Meter

Basic Info


Model No.: 20KN-300KN

Variety: Geogrids

Material: Fiberglass

Bitumen Coated Fiberglass Geogrid: 25x25mm Asphalt Reinforcement Fiberglass Geogrid


Additional Info


Packaging: PE Bags + Colored Tapes

Productivity: 1000000 Sqm Per Day

Brand: Lianyi Geosynthetics

Place of Origin: China

Certificate: ISO CE SGI TRI SGS IGS IECA


Product Description

                               High Intensity Fiberglass Geogrid For Highway Construction



Product Introduction


Fiberglass geogrid for asphalt reinforcement is a kind of new favorable earthwork base material to strengthen the road surface and roadbed.




Product Function


1. It reinforce old asphalt concrete road surface and asphalt layer, and prevents damage;

2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction.

3. It is used in road expansion and improvment project and crack caused by old and new combination position and uneven sedimentation;

4. It is used in soft soil base reinforcement treatment , is favorable for soft soil water separation and concretion,restrains sedimentation effectivly,distributes stress uniformly and improve overall strength of road base;

5. It is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation crack reflection.




Specification




Performance/Specification

GG25-25

GG30-30

GG40-40

GG50-50

GG80-80

GG100-100

GG120-120

Intensity (KN/m)

Longitudinal

25

30

40

50

80

100

120



Horizontal

25

30

40

50

80

100

120

Break elongation ratio (%)

Longitudinal

3

3

3

3

3

3

3



Horizontal

3

3

3

3

3

3

3

Mesh size (mm×mm)

12~50

12~50

12~50

12~50

12~50

12~50

12~50

Breadth (m)

1~6

1~6

1~6

1~6

1~6

1~6

1~6



Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
