High Strength Polyester Geogrid Reinforcement Retaining Wall

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 7 Days

Basic Info


Model No.: 35-20KN,40-25KN,60-30KN,80-30KN,100-30KN,110-30KN,150-30KN,200-30KN,300-30KN,600-30KN,800-50KN,etc

Material: Polyester

1-6 Meters: 20-1200KN


Additional Info


Packaging: PE BAGS+COLORED TAPES

Productivity: 100000SQM PER DAY

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE SGI TRI SGS IECA IGS


Product Description

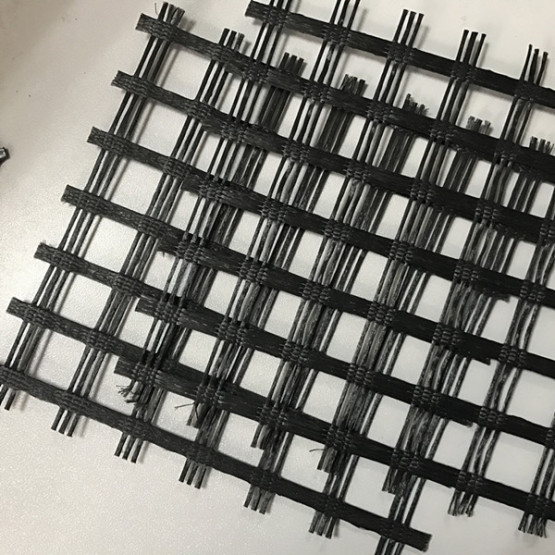

       High Strength Polyester Geogrid Reinforcement Retaining Wall




Roll Width:1-6m

Roll Lenth:50-500m

Mesh Size:12.7x12.7mm,25.4x25.4mm,40x40mm,50x50mm etc



Production machine: KARL MAYER (Germany)

Package Plastic bags; PE films.

Remarks : Other specifications can also be produce



Product Introduction


High strength warp knitted polyester geogrid is a kind of new high quality base material reinforcing the roadbed.  It uses high strength polyester and polypropylene fiber as its raw material and then warp knitted directionally and coated with a special glue.


Product Features


The warp knitted polyester geogrid has the characteristics of  high intension, low elongation ratio, erosion-resistant, aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on.



Product Function


Reinforcing the embankment slope.

Retaining walls reinforced to enhance the overall strength.

Reinforcement, segregation of dam and river in water conservancy projects reinforce and the soft soil base, strength their projection and improve the bearing capacity and stability of the foundation.

The soft soil roadbeds of road, railway and other municipal roads are reinforced which can effectively improve the strength of subgrade, delaying  reflection cracks in the road.




Specification




Tensile
Strength
(KN)

Warp

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200

Weft

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200

Elogation

Polyester

13%

13%

13%

13%

13%

13%

13%

13%

Mesh size(mm)

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

Width(m)

1~6

1~6

1~6

1~6

1~6

1~6

1~6

1~6

Length(m)

50~300

50~300

50~300

50~300

50~300

50~300

50~300

50~300

Temperature
Resistant ()

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

Resin
Content (%)

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

resistance to installation damage

%SC/%SW/%GP

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

resistance to long term degradation  %

100

100

100

100

100

100

100

100

Design life   (years)

150

150

150

150

150

150

150

150

Glue Type

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage






Product model

PET
60/30

PET
80/30

PET
100/30

PET
150/30

PET
180/30

PET
250/30

PET
300/30

Project















Material

High tenacity polyester

High tenacity polyester

High tenacity polyester

High tenacity polyester

High tenacity polyester

High tenacity polyester

High tenacity polyester

After treatment

PVC soakage

PVC soakage

PVC soakage

PVC soakage

PVC soakage

PVC soakage

PVC soakage

Tensile
strength(KN/m)

Longitudinal

>=60

>=80

>=100

>=150

>=180

>=250

>=300



Transverse

>=30

>=30

>=30

>=30

>=30

>=30

>=30

Elogation  %

13%

13%

13%

13%

13%

13%

13%

Gridding size
(mmXmm)

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

Temperature
Resistant ()

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

Resin
Content (%)

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

resistance to installation damage

%SC/%SW/%GP

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

resistance to long term degradation  %

100

100

100

100

100

100

100

Design life   (years)

150

150

150

150

150

150

150

Breadth(m)

2-6

2-6

2-6

2-6

2-6

2-6

2-6

Remark

Our company can make products based on the different requirement from customers. The largest strength could be 1000KN/m.
