High Strength PP Woven Geotextile

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 7 Days

Basic Info


Model No.: 80g to 1500g

Material: Plastic

2x100m,2.5x100m,3.95x100m,4x100m,5x100m: PP Woven Geotextile


Additional Info


Packaging: PE Bags+Colored tapes

Productivity: 100000sqm per day

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE SGS SGI TRI IGS IECA IFAI


Product Description

                                                               PP Woven Geotextile


Advantages:



1.High strength, with identical strength of warp and weft when necessary.



2.The woven geotextile undergoes a stabilizing process in production so that it has fair stability and creep



 behavior.



3.The geotextile has a breadth of 8m such that lapping is reduced and lapping strength in increased.



4.The woven geotextile serves multiple purposes of separation,water discharge and seepage  prevention.



5.Competitive advantage. Light weight, High strength, Good integrity, Convenient application, Effective



 reinforcement, Low cost.




Usage

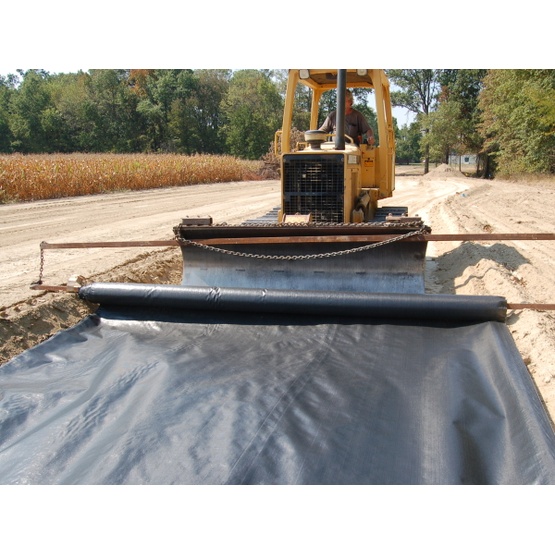

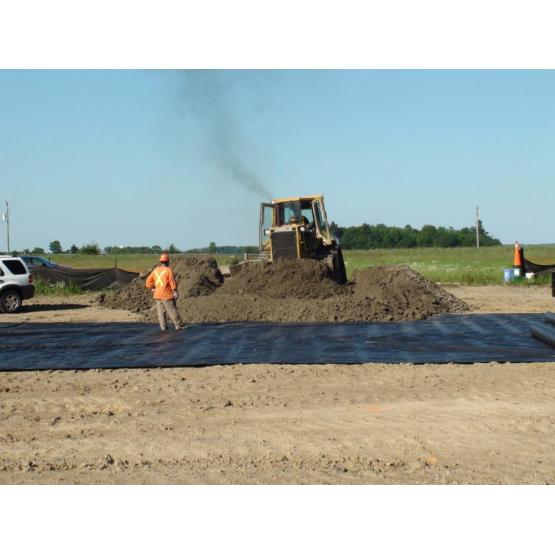

Used in project of highway, railway, sports ground, dam, water and soil project ,tunnel, Coastal farmland reclamation,mine, environmental protection and coastal tidal land for anti-leakage,filtering,draining,isolating. Also can be made of industry bag, etc.



Size of Package


Width 1m-6m, length 50m-700m (or at request).



Specification

Item

Unit

25-20KN



30-20KN

40-28KN

60-42KN

80-56KN

100-70KN

Unit Weight

g/m2

136(200lbs)

150

200(315lbs)

320

430

550

Tensile Strength

Longitudinal



KN/m

26.5

31.70

40.50

62.60

82.2

103.9

Transverse

KN/m

20.6

21.00

28.20

43.00

57.2

72.4

Elongation

At break

Longitudinal



%

175

18.9

18.6

18.8

19

20.8

Transverse

%

151

17.8

17.8

17.8

17.9

20.9

Grab Tensile Strength

KN

0.89

1.2

1.40

2.20

2.50

3.90

CBR Puncture Resistance

KN

2.5

2.8

3.60

7.40

8.50

10.20
