High Strength Reinforcement HDPE Geocell

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 5000 Square Meter
Delivery Time: 5 Days

Basic Info


Model No.: 75mm,100mm,150mm,200mm,250mm

Material: Plastic

Textured Perforated Geocell 1.1mm,1.2mm: Geocell 50cm,75cm,100cm,150cm,200cm


Additional Info

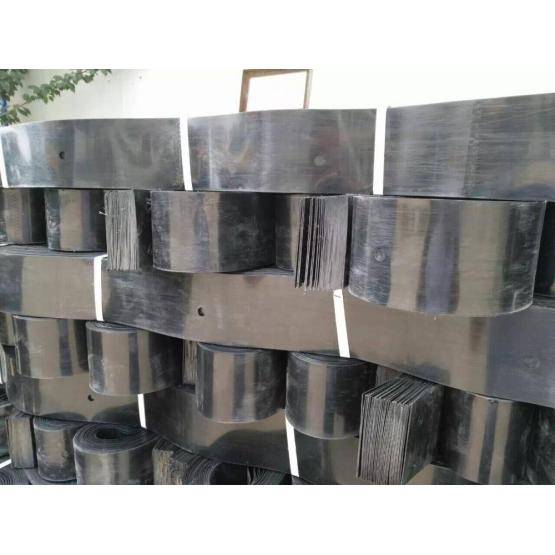

Packaging: Colored Tapes Or Palletized

Productivity: 50,000.00 sqm per day

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE IGS IECA TRI SGI SGS


Product Description

                                                       High Strength Reinforcement HDPE Geocell


Product Description

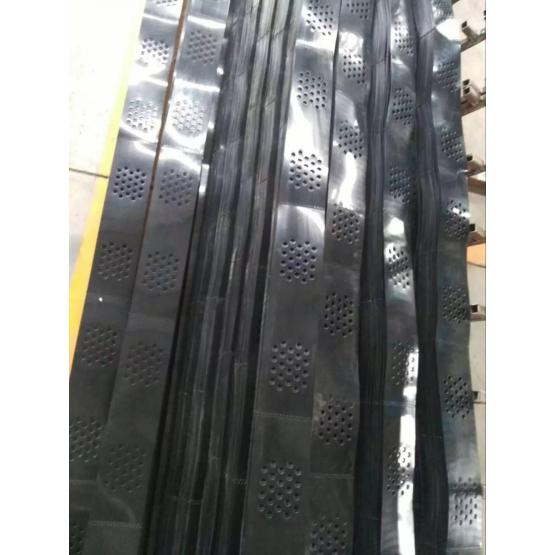

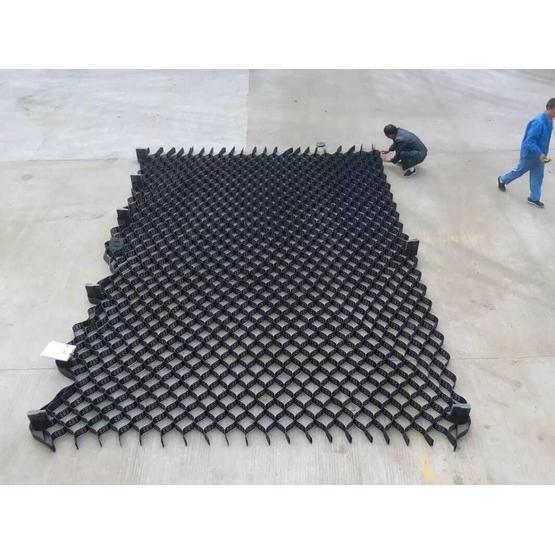

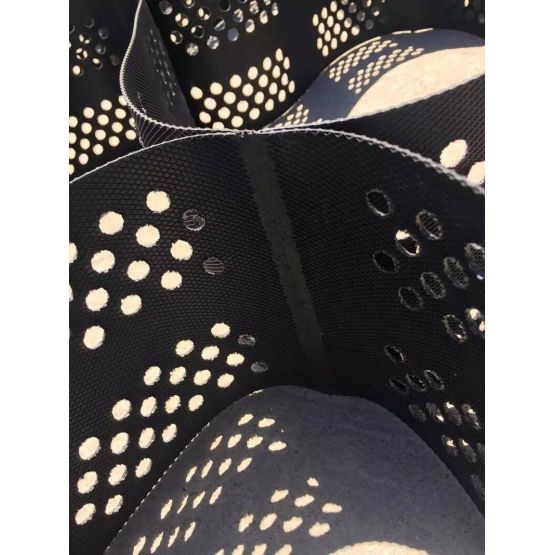

High Strength Reinforcement HDPE Geocell is made of a new type of high-strength geosynthetics, which is popular with both domestic and abroad, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction, the geocell can be pull into a network and launched into a three-dimensional honeycomb grid. As it filled in soil, macadam, concrete or other granular materials, constituted to be a construction, which has strong sidewise restraint and high rate of stiffness.


Product Application


1To stable the roadbed of railway

2To stable the roadbed of highroad

3To bear the load of dike or retaining wall

4To the improvement of shallow riverway

5To support the pipeline and sewer

6For the prevention of landslide by useing geocell as a heavy-duty hybrid force retaining wall

7To be used as independent wall, wharf and breakwater, etc

8For the desert, beaches and the riverbed, the river bank`s regulation




Specification



Material Properties

Unit









Test Method

Cell Depth

mm

75

100

150

200



Polymer Density

g/cm3

              0.935-0.965

ASTM D 1505

Enviromental Stress Crack Resistance

Hours

                400

ASTM D 5397

Enviromental Stress Crack Resistance

Hours

                  6000

ASTM D 1693

Carbon Black Content

%

                1.5

ASTM D 1603

Nominal Sheet Thickness Before Texturing

mm

            1.27 -5%,+10%

ASTM D 5199

Nominal Sheet Thickness After Texturing

mm

            1.52-5%,+10%

ASTM D 5199

Strip Puncture Resistance

N

                450

ASTM D 4833

Seam Peel Strength

N

1065

1420

2130

2840

EN ISO13426-1B

Seam Efficiency

%

100

GRI-GS13

Nominal Expanded Cell Size (width x length)

mm

320x287,475x508 etc



Nominal Expanded Panel Size (width x length)

 m

2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44





Our Main Products:

Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China, Polyester Geogrid,Plastic geogrid, biaxial geogrid, high tensile strength geogrid made in China & Polyester Geogrid 50/50KN Stitched with light weight spunbond nonwoven geotextile, Plastic geogrid, biaxial geogrid, high tensilestrength geogrid made in China & Polyester Geogrid Composite with spunbond nonwoven geotextile, or needlepunched nonwoven geotextile by glue, PP Biaxial Geogrid, HDPE and PP Uniaxial Geogrid, Combigrid ( PP Biaxial Geogrid composite with nonwoven geotextile by welding), HDPE Geomembrane, HDPE Geocell,Mining Geogrid, Geonet, PP Woven Geotextile etc.
