Knitted Glassfiber Geogrid With Geotextile Geocomposite

Unit Price: 0.1~1.6 USD
Min. Order: 10000 Square Meter

Basic Info


Model No.: 50-50KN-30g

Material: Fiberglass

2x100m,2.5x100m,3.95x100m,4x100m,5x100m: 50/50-25,100/100-25,50/50-30,100/100-30,50/50-50


Additional Info

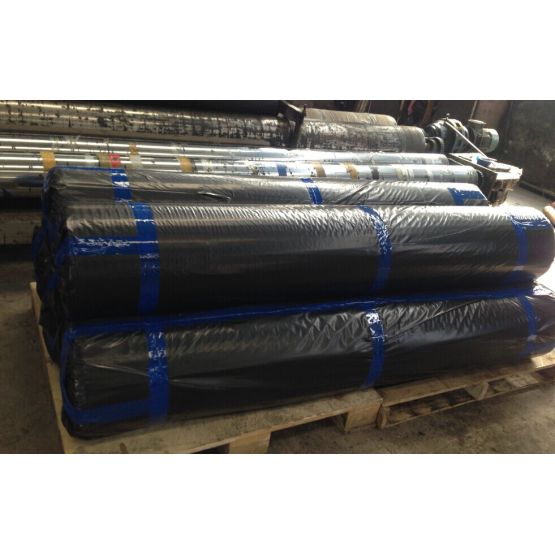

Packaging: PE Bags+Colored tapes

Productivity: 100000sqm per day

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE SGS SGI TRI IGS IECA IFAI


Product Description

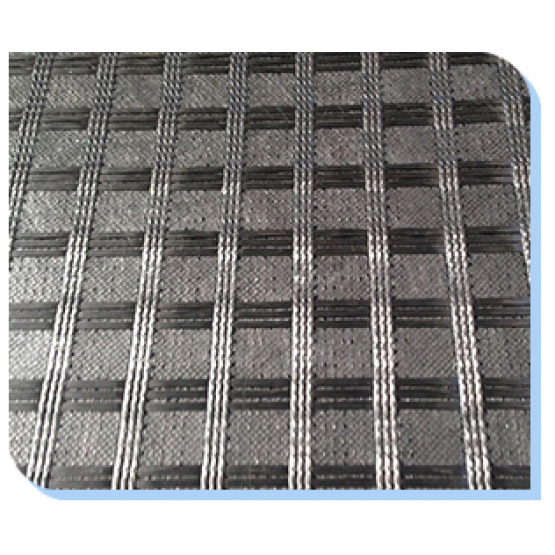

        Knitted Glassfiber Geogrid With Geotextile Geocomposite





Product Introduction



Knitted Glassfiber Geogrid With Geotextile Geocomposite is an asphalt reinforcement composite that fiberglass geogrid with light weight PET or PP Spunbond Nonwoven Fabric . They are stitched together and coated by bitumen to strengthen the bond with the asphalt layers . The asphalt layer to increase the tensile strength to prevent road surface crack caused by foundation crack reflection. The chemistry stability is good, the hot-stability is good, anti-weary dehiscence, anti-low temperature shrinkage crack, postponement reduction reflection crack.


Product Function

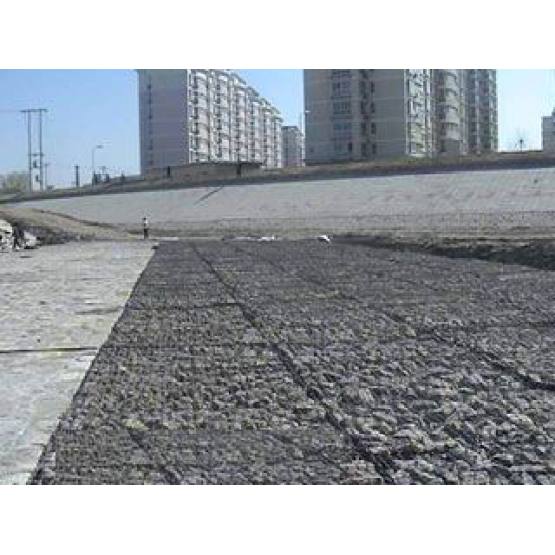

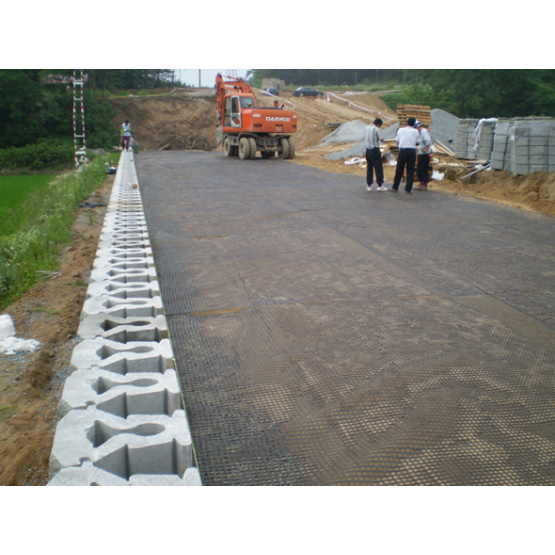

It can widely apply in the water conservation, the municipal administration, the building, the transportation, the subway, the tunnel, the environmental protection and so on.



Specification


Material Properties

Unit







Test Method

Unit Weight

g/m2

270+/-10

520+/-20

550+/-20

ASTM D-5261

Aperture Size

mm

     25.4x25.4       40x40

Measured

Open Area of Grid

%

>80

CWO 22125

Tensile Strength (MD)

KN/m

50

100

120

ASTM D-6637

Tensile Strength (CMD)

KN/m

50

100

120

ASTM D-6637

Elongation at Break

%

              <5

ASTM D-6637

Shrinkage @ 375° F for 15 min

%

              <1



Melting Point

° C

              255

ASTM D-276

Roll Size

m

2x100m,2.5x100m,3.95x100m,5x100m
