Polyester Geogrid For base reinforcement

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 7 Days

Basic Info


Model No.: 50-50KN,60-60KN,70-70KN,80-80KN,90-90KN,100-100KN, 105-105KN,115-115KN,120-120KN,150-150KN,200-200KN

Material: Polyester

1-6 Meters: 20-1200KN


Additional Info


Packaging: PE BAGS+COLORED TAPES

Productivity: 100000SQM PER DAY

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE SGI TRI SGS IECA IGS


Product Description

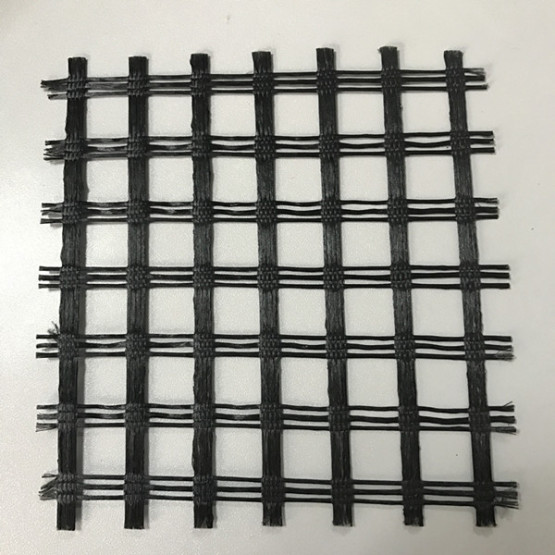

                                                          Polyester Geogrid For base reinforcement


Product Introduction


Polyester Geogrid is manufactured from creep resistant, high tenacity polyester yarn and warp knitting into grid based grey fabrics, after coated with Oil PVC / Water PVC / Bitumen / SBR / Acrylic acid coating. GeoskyGrid is manufactured in a wide range of standard tensile strengths from 15KN/m to 1200KN/m.


Product Features


The warp knitted polyester geogrid has the characteristics of  high intension, low elongation ratio, erosion-resistant, aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on.


Product Function


Reinforcing the embankment slope.

Retaining walls reinforced to enhance the overall strength.

Reinforcement, segregation of dam and river in water conservancy projects reinforce and the soft soil base, strength their projection and improve the bearing capacity and stability of the foundation.

The soft soil roadbeds of road, railway and other municipal roads are reinforced which can effectively improve the strength of subgrade, delaying  reflection cracks in the road.



Specification



Tensile
Strength
(KN)

Warp

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200



Weft

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200

Elogation

Polyester

13%

13%

13%

13%

13%

13%

13%

13%

Mesh size(mm)

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

Width(m)

1~6

1~6

1~6

1~6

1~6

1~6

1~6

1~6

Length(m)

50~300

50~300

50~300

50~300

50~300

50~300

50~300

50~300

Temperature
Resistant ()

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

Resin
Content (%)

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

resistance to installation damage

%SC/%SW/%GP

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

resistance to long term degradation  %

100

100

100

100

100

100

100

100

Design life   (years)

150

150

150

150

150

150

150

150

Glue Type

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage



Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
