polyethylene HDPE geomembrane Liner

Unit Price: 0.1~1.6 USD
Min. Order: 10000 Bag/Bags

Basic Info


Model No.: 0.25mm,0.5mm,0.75mm,1.0mmmm,1.2mm,1.5mm,2.0mm,2.5mm

Material: Plastic

HDPE Geome: Drainage Geonet CE121、CE131、CE151、CE181、DN1、HF10

HDPE Geomembrane: 0.25mm,0.5mm,0.75mm,1.0mm,1.5mm,2.0mm,2.5mm,3.0mm


Additional Info


Packaging: PE Bags + Colored Tapes

Productivity: 50,000.00 sqm per day

Brand: Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE IGS TRI SGS SGI IECA


Product Description

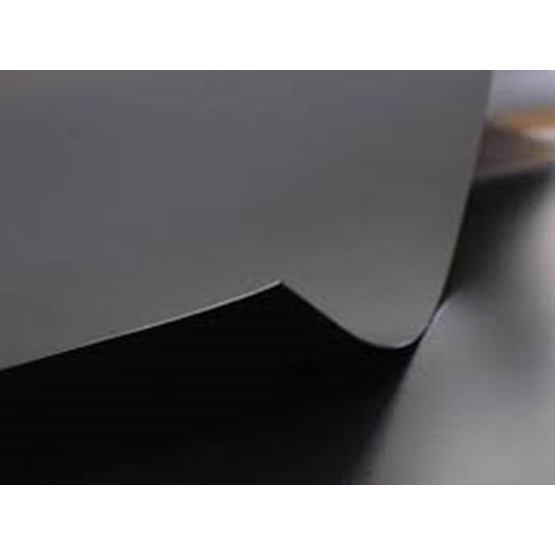

                                                        polyethylene(HDPE) geomembrane Liner


Description


Geo-membrane is produced by a method of three layer co-extrusion model. The raw material is processed at 200°C by fusing and coextrusion, whose basic properties are kept during the producing process.



Features

Can bear chemical erosion.

A wider using temperature range and a longer using life.


Application


It can be widely used in areas of garbage burying, waste disposal, tail minerals storage and underground construction projects.



High Density Polyethylene Geomembrane

Specification



Properties

Test Method

HDPE-Smooth

Thickness(min.ave.)

ASTM D 5199 Mm(mil)

0. 5(20)

0.75(30)

1.00(40)

1.5(60)

2.0(80)

Density

ASTM D 792 g/cm3

0.94

0.94

0.94

0.94

0.94

Tensile Properties(min.ave.)

ASTM D 638 Tipo IV











Yield Strength

Kn/M(lb/in)

7(40)

11(63)

15(84)

22(126)

29(168)

Break Strength

Kn/M(lb/in)

13(74)

20(114)

27(152)

40(228)

53(304)

Yied Elongation

%

12

12

12

12

12

Break Elongation

%

700

700

700

700

700

Tear Resistance(min.ave.)

ASTM D 1004 N(lb)

62(14)

93(21)

125(28)

187(42)

249(56)

Puncture Resistance(min.ave.)

ASTM D 4833 N(lb)

160(36)

240(54)

320(72)

480(108)

640(144)

Carbon Black Content

ASTM D 1603 (%)

2~3

2~3

2~3

2~3

2~3



Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
