Soil Reinforcement Asphalt Coated Fiberglass Geogrid

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 7 Days

Basic Info


Model No.: 50-50KN,60-60KN,70-70KN,80-80KN,90-90KN,100-100KN, 105-105KN,115-115KN,120-120KN,150-150KN,200-200KN


Additional Info


Packaging: PE Bags + Colored Tapes

Productivity: 1000000 Sqm Per Day

Brand: Lianyi Geosynthetics

Place of Origin: China

Certificate: ISO CE SGI TRI SGS IGS IECA


Product Description

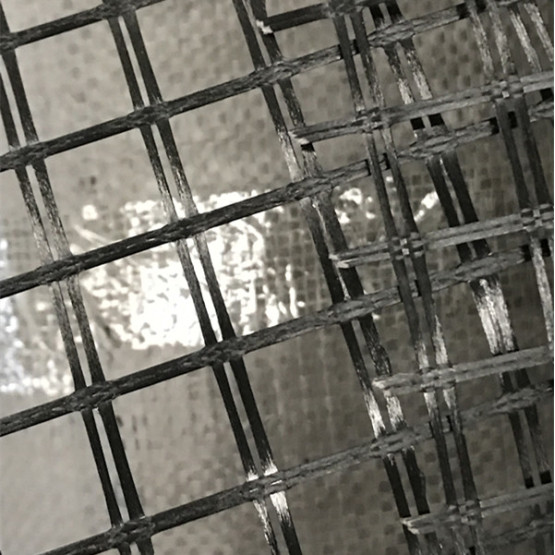

                               Asphalt Coated Fiberglass Reinforcement Geogrid



Product Feature


1. A kind of planar mesh material using alkali-free fiberglass yarn as base body and then coated with high quality modified asphalt.

2. Warp knitted with oriental structure which gives full play of yarn strength and improves its mechanical property to make the product high tensile, tearing and  creep-resistant.

3. Coated with asphalt making full protection of the fiberglass matrix and greatly improving its wear and shear resistance.

4. Having a good performance in pavement strengthening, track cracking and solving difficulties of strengthening the bituminous pavement.





Product Function


1. It reinforce old asphalt concrete road surface and asphalt layer, and prevents damage;

2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction.

3. It is used in road expansion and improvment project and crack caused by old and new combination position and uneven sedimentation;

4. It is used in soft soil base reinforcement treatment , is favorable for soft soil water separation and concretion,restrains sedimentation effectivly,distributes stress uniformly and improve overall strength of road base;

5. It is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation crack reflection.




Specification




Performance/Specification

GG25-25

GG30-30

GG40-40

GG50-50

GG80-80

GG100-100

GG120-120

Intensity (KN/m)

Longitudinal

25

30

40

50

80

100

120



Horizontal

25

30

40

50

80

100

120

Break elongation ratio (%)

Longitudinal

3

3

3

3

3

3

3



Horizontal

3

3

3

3

3

3

3

Mesh size (mm×mm)

12~50

12~50

12~50

12~50

12~50

12~50

12~50

Breadth (m)

1~6

1~6

1~6

1~6

1~6

1~6

1~6





Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
