Warp Knitted and Polymeric Coated Polyester Geogrids

Unit Price: 0.1~1.8 USD
Min. Order: 10000 Square Meter

Basic Info


Model No.: 50-50KN,60-60KN,70-70KN,80-80KN,90-90KN,100-100KN, 105-105KN,115-115KN,120-120KN,150-150KN,200-200KN

Variety: Geogrids

place of origin: China

Material: Polyester

Roll Size: 1-6 Meters

Tensile Strength: 20-1200KN

Type: Geogrid

Mesh Size: 12.5*12.5mm,25.4*25.4mm,40*40mm,etc

Color: Black

Enlongation: <10%


Additional Info

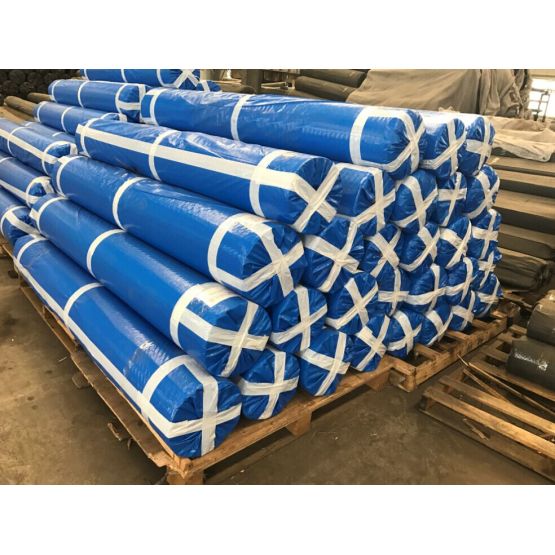

Packaging: PE BAGS+COLORED TAPES

Productivity: 100000SQM PER DAY

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 100000m2/day

Certificate: ISO CE SGI TRI SGS IECA IGS

Port: Qingdao


Product Description

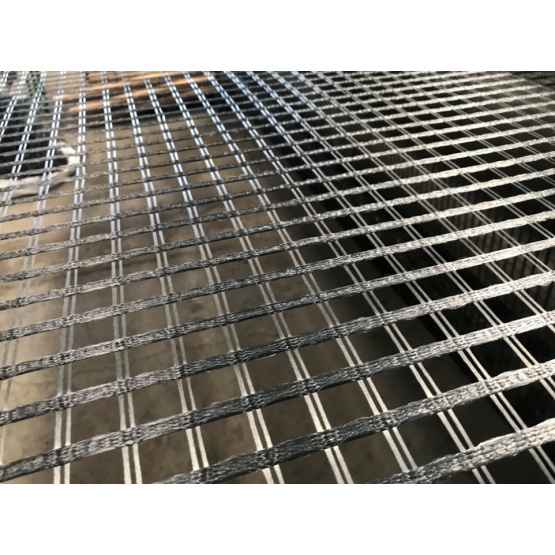

                                                              Warp Knitted and Polymeric Coated Polyester Geogrids


Product Introduction


Lianyi Polyester Geogrids are knitted, and polymeric coated polyester geogrids engineered for demanding soil applications. Superior grades of high tenacity, high molecular weight and low carboxyl end group polyester yarns are formed into a grid structure using a highly sophisticated warp knitting technology and coating technology. The product is ideal for the reinforcement of soils and other granular materials for a variety of applications.


Product Features


The warp knitted polyester geogrid has the characteristics of  high intension, low elongation ratio, erosion-resistant, aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on.


Product Function


Reinforcing the embankment slope.

Retaining walls reinforced to enhance the overall strength.

Reinforcement, segregation of dam and river in water conservancy projects reinforce and the soft soil base, strength their projection and improve the bearing capacity and stability of the foundation.

The soft soil roadbeds of road, railway and other municipal roads are reinforced which can effectively improve the strength of subgrade, delaying  reflection cracks in the road.



Specification



Tensile
Strength
(KN)

Warp

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200



Weft

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200

Elogation

Polyester

13%

13%

13%

13%

13%

13%

13%

13%

Mesh size(mm)

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

Width(m)

1~6

1~6

1~6

1~6

1~6

1~6

1~6

1~6

Length(m)

50~300

50~300

50~300

50~300

50~300

50~300

50~300

50~300

Temperature
Resistant ()

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

Resin
Content (%)

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

resistance to installation damage

%SC/%SW/%GP

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

resistance to long term degradation  %

100

100

100

100

100

100

100

100

Design life   (years)

150

150

150

150

150

150

150

150

Glue Type

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage
