Product Description
Geocomposite Geotextile Stitched With Geogrid
Product Introduction

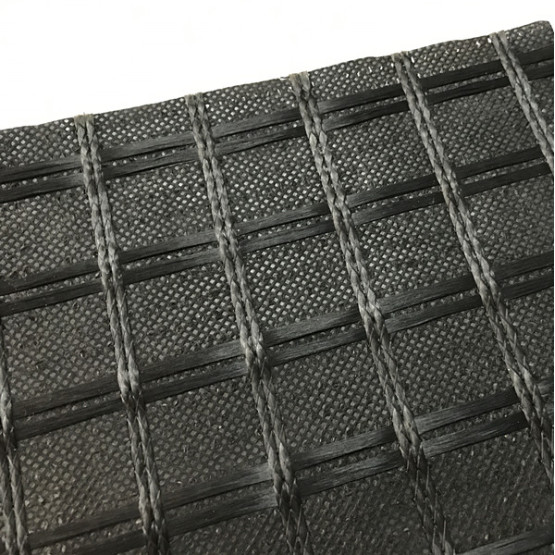

Geocomposite Geotextile Stitched With Geogrid is the geocomposite which comprising a high-strength, low-strain reinforcement grid with extra aperture size and a flexible nonwoven fabric bonded to the upper face.The polyester yarns(glass roving) with high tensile strength and low creep performs the function of reinforcement and the nonwoven performs the functions of separation, filtration and drainage.
Product Function
Asphalt Reinforcement Polyester Geogrid can widely apply in the water conservation, the municipal administration, the building, the transportation, the subway, the tunnel, the environmental protection and so on.
Specification
|
Material Properties
|
Unit
|
|
|
|
Test Method
|
|
Unit Weight
|
g/m2
|
270+/-10
|
500+/-20
|
520+/-20
|
ASTM D-5261
|
|
Aperture Size
|
mm
|
25.4x25.4 40x40
|
Measured
|
|
Open Area of Grid
|
%
|
＞80
|
CWO 22125
|
|
Tensile Strength (MD)
|
KN/m
|
50
|
100
|
120
|
ASTM D-6637
|
|
Tensile Strength (CMD)
|
KN/m
|
50
|
100
|
120
|
ASTM D-6637
|
|
Elongation at Break
|
%
|
<10
|
ASTM D-6637
|
|
Shrinkage @ 375° F for 15 min
|
%
|
<1
|
|
|
Melting Point
|
° C
|
255
|
ASTM D-276
|
|
Roll Size
|
m
|
2x100m,2.5x100m,3.95x100m,5x100m
|
|
