Impregnated Bitumen Geocomposite Geogrid

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 7 Days

Basic Info


Model No.: 30/30-30,50/50-30,100/100-30 30/30-50,50/50-50,100/100-50

Material: Polyester

Polyester Geogrid With Nonwoven 1-6m: 30/30-30,50/50-30,100/100-30 30/30-50,50/50-50,100


Additional Info


Packaging: PE Bags And Colored Tapes

Productivity: 500,000.00 sqm per day

Brand: Lianyi Geosnthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE IGS IECA SGS TRI SGI


Product Description

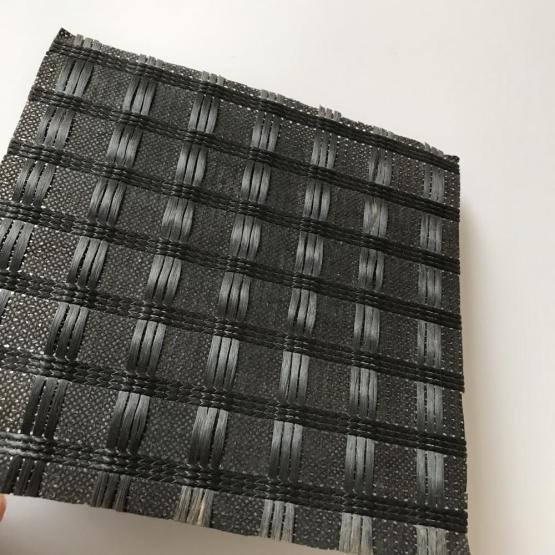

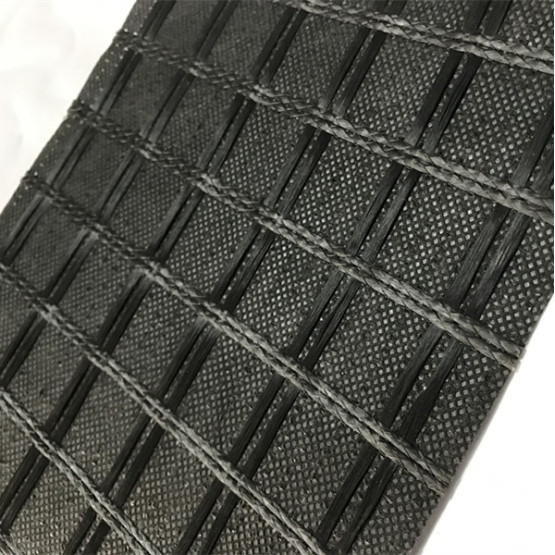

Impregnated Bitumen Geocomposite Geogrid



Product Introduction



Impregnated Bitumen Geocomposite Geogrid is geogrid reinforcing geotextile,it`s a flexible, composite reinforcement grid comprising high modulus fiberglass grid or polyester grid combined with an ultra light nonwoven geotextile.  Coated with bitumen, this composite creates a strong bond with asphalt that allows its tensile strength and distribute loads over a greater area. It`s the best solution for reflective cracking.

There is one significant enhancement compared to the regular geogrid products: the non-woven fabric layer is saturated with bitumen in order to provide an effective moisture barrier.






Product Function


Asphalt Reinforcement Polyester Geogrid can widely apply in the water conservation, the municipal administration,  the building, the transportation,  the subway,  the tunnel,  the environmental protection and so on.



Specification




Material Properties

Unit







Test Method

Unit Weight

g/m2

270+/-10

500+/-20

520+/-20

ASTM D-5261

Aperture Size

mm

     25.4x25.4      40x40

Measured

Open Area of Grid

%

              80

CWO 22125

Tensile Strength (MD)

KN/m

50

100

120

ASTM D-6637

Tensile Strength (CMD)

KN/m

50

100

120

ASTM D-6637

Elongation at Break

%

             <10

ASTM D-6637

Shrinkage @ 375° F for 15 min

%

             <1



Melting Point

° C

             255

ASTM D-276

Roll Size

 m

2x100m,2.5x100m,3.95x100m,5x100m
